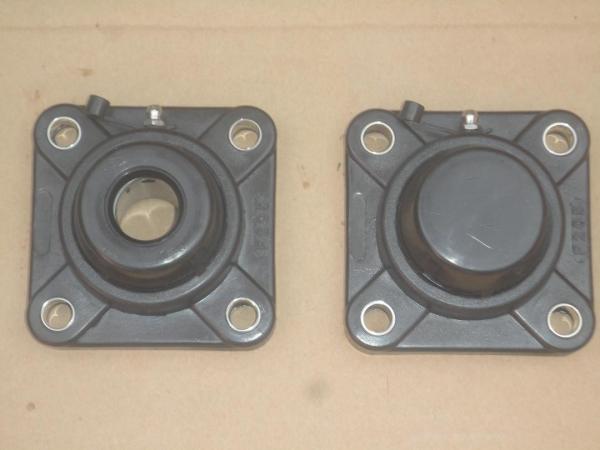

UCF 209 Bearing units plastic bearing housing units conveyor
bearing POM /stainless steel bearing
Materials: POM
Color:white or black
| TYPE | d | Boundary dimention (mm) | | weight |
| | in | mm | a | h | e | b | S1 | S2 | g | w | Bi | n | kg |
| UCF201 | 1/2 | 12 | 127 | 33.3 | 95 | 38 | 11 | 14 | 14.2 | 65 | 31 | 12.7 | 0.6 |
| UCF202 | 9/16 5/8 | 15 | 127 | 33.3 | 95 | 38 | 11 | 14 | 14.2 | 65 | 31 | 12.7 | 0.6 |
| UCF203 | 11/16 | 17 | 127 | 33.3 | 95 | 38 | 11 | 14 | 14.2 | 65 | 31 | 12.7 | 0.6 |
| UCF204 | 3/4 | 20 | 127 | 33.3 | 95 | 38 | 11 | 14 | 14.2 | 65.5 | 31 | 12.7 | 0.6 |
| UCF205 | 13/16 7/8 15/16 1 | 25 | 141 | 36.5 | 105 | 38 | 11 | 14 | 14.5 | 71 | 34 | 14.3 | 0.8 |
| UCF206 | 1-1/16 1-1/8 1-3/16 1-1/4 | 30 | 163 | 42.9 | 119 | 46 | 14 | 18 | 17.8 | 84 | 38.1 | 15.9 | 1.12 |
| UCF207 | 1-1/4 1-5/6 1-3/8 1-7/16 | 35 | 168 | 47.6 | 127 | 48 | 14 | 18 | 18 | 94.5 | 42.9 | 17.5 | 1.46 |
| UCF208 | 1-1/2 1-9/16 | 40 | 184 | 49.2 | 137 | 54 | 14 | 18 | 19.5 | 99 | 49.2 | 19 | 1.84 |
| UCF209 | 1-5/8 1-11/16 1-3/4 | 45 | 192 | 54 | 146 | 54 | 17 | 20 | 23 | 106 | 49.2 | 19 | 2.15 |
| UCF210 | 1-13/16 1-7/8 1-15/16 2 | 50 | 206 | 57.2 | 159 | 60 | 17 | 20 | 23 | 114 | 51.6 | 19 | 2.42 |
| UCF211 | 2 2-1/16 2-1/8 2-3/16 | 55 | 219 | 63.5 | 171 | | 17 | 20 | 23 | 125 | 55.6 | 22.2 | 3.31 |
| UCF212 | 2-1/4 2-5/1 2-3/8 2-7/16 | 60 | 241 | 69.8 | 184 | | 17 | 20 | 26 | 136 | 65.1 | 25.4 | |
China Zhiyue Machinery Co.,Ltd is a special supplier of conveyor
system components,including plastic and stainless steel flat top
chains, Modular belts, other spare parts, such as UHMWPE
wearstrips, side guards, chains guide, bipods, tripods, brackets,
clampls.ect.
With our years of experence, quality products, excellent services
we work with world wide clients from America, Europe, Africa, many
counrties of Asia. We keep very good business relation with them,
and get trusted from them.
Our products application:
Packaging and conveying industry
Beverage bottling and handling industry
Food and meat processing industry
Chemical industry
Pharmaceuticals industry
Automobile industry
Electrical and electronics industry
Textile industry
Light engineering industry
