CHAIN CODE

WIDTH/MM

WEIGHT/(KG/M)

WORKING LOAD/N

SIDE FLEX RADIS/MM

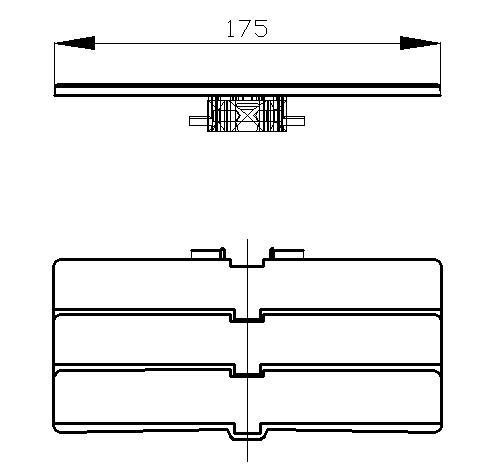

LF175

175

1.8

2100

500

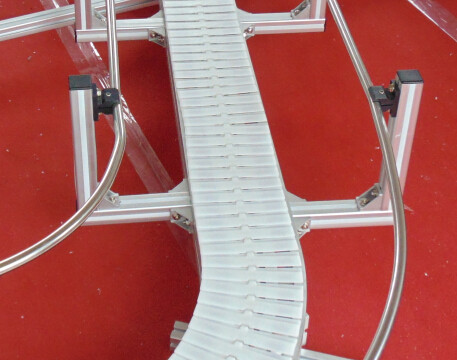

Flexible chain conveyor is a form of combination solid conveying system,the use of aluminum alloy frame, steel conveyor chain. With smart,lightweight, beautiful, modular structure, modular design, installation fast, random, system stability, compact, quiet, no pollution, widely used in high hygiene requirements, site area is small, supporting the use ofclean, high degree of automation of the production line. It has the advantages of small turning radius, climbing strong. Pharmaceutical companies, cosmetics factory, food factory, bearing factory and other industries. The convenient products ideal automation line.

This system can be big or small, flexible, simple operation, can be made into the holder, push, hanging, clamping various conveying mode,composition of aggregates, triage, triage, the confluence of a variety of functions, with all kinds of pneumatic, electric, motor control device,and according to the different needs of the user, the formation of various forms of production line.
