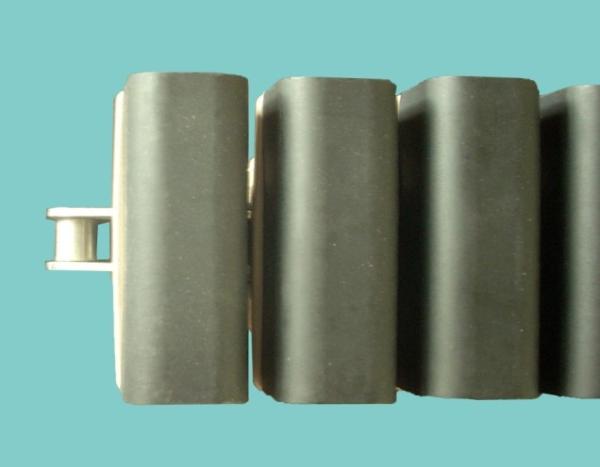

1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines

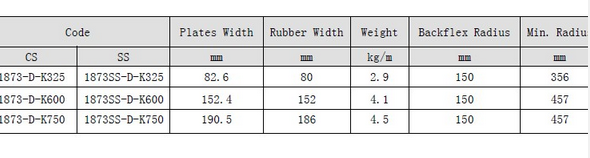

The Grip chain 1873-D is designed for vertical conveyors where the items are conveyed between two Grip links.Main application for Grip 1873-D is vertical conveying of containers. The flights for the 1873-D chain are the Snap-On type. The Grip chains have a 0.75 in. pitch side flexing roller base chain. The Grip 1873-D can run in both directions.The recommended temperature area for the Pitch: 19.05mm Width: 82.5mm /152.4mm /190.5mm Code: 1873SS-G4-K325 1873SS-G4-K450 1873SS-G4-K750 Materials: POM Rubber inserts stainless steel base chains Grip chain is -40 to +80°C (-40 to +176°F).

snap on chains and flex chains.pdf

China Zhiyue Machinery Co.,Ltd is a special supplier of conveyor system components,including plastic and stainless steel flat top chains, Modular belts, other spare parts, such as UHMWPE wearstrips, side guards, chains guide, bipods, tripods, brackets, clamps.ect.

With our years of experence, quality products, excellent services we work with world wide clients from America, Europe, Africa, many counrties of Asia. We keep very good business relation with them, and get trusted from them.
Our products application:

Packaging and conveying industry
Beverage bottling and handling industry
Food and meat processing industry
Chemical industry
Pharmaceuticals industry
Automobile industry
Electrical and electronics industry
Textile industry
Light engineering industry
