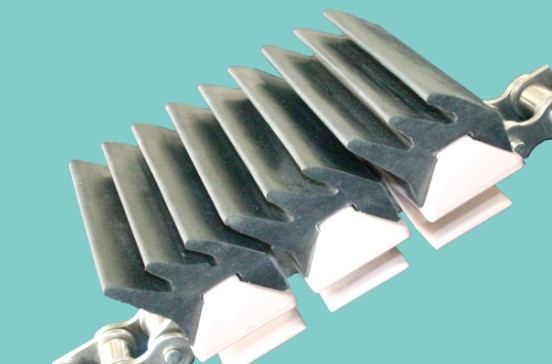

SS1873-G4 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEMS

The Gripper chain is designed for vertical conveyors where the items are conveyed between two uni Grip links.The gripper 1873 chain supplied with moulded rubber inserts. The main application for Grip 1873-G4 is vertical conveying of cans or bottles. The flights for the 1873-G4 chain are the Snap-On type. The uni Grip chains have a 0.75 in. pitch side flexing roller base chain. The recommended temperature area for the uni Grip chain is -40 to +80°C (-40 to +176°F). Pitch: 19.05mm Width: 82.5mm /114.3mm Code: 1873SS-G4-K325 1873SS-G4-K325 Materials: POM Rubber inserts stainless steel base chains

snap on chains and flex chains.pdf

China Zhiyue Machinery Co.,Ltd is a special supplier of conveyor system components,including plastic and stainless steel flat top chains, Modular belts, other spare parts, such as UHMWPE wearstrips, side guards, chains guide, bipods, tripods, brackets, clamps.ect.

With our years of experence, quality products, excellent services we work with world wide clients from America, Europe, Africa, many counrties of Asia. We keep very good business relation with them, and get trusted from them.
Our products application:

Packaging and conveying industry
Beverage bottling and handling industry
Food and meat processing industry
Chemical industry
Pharmaceuticals industry
Automobile industry
Electrical and electronics industry
Textile industry
Light engineering industry
